FUSHENG AIR COMPRESSOR
- SAV Series
- 變頻螺旋式空壓機
Variable Speed Drive
10HP - 270HP
Screw Air Compressor
7.5kW – 200kW
- Well-balanced
- Quiet
- Low Vibration
- High-Precision oil filter
- Computerized self-diagnosis
- Safety protection
Inverter Control
- Adjust motor speed according to demand
- 30-100% turndown range
- 35% lower energy consumption
- Auto-start for secondary compressor upon demand

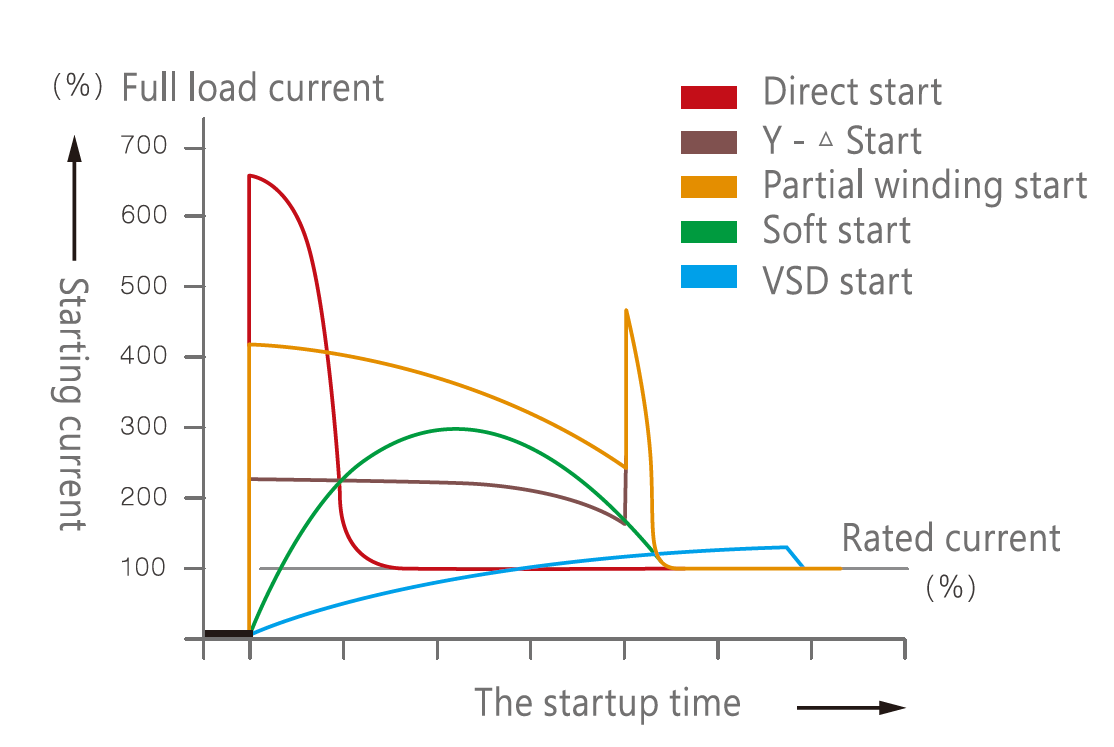

Smooth Start
- Change in frequency does not require peak current
Easy Maintenance
- Balanced maintenance schedules between compressors
PLC control ready
- Scheduled switch between compressors for stable air supply
- Remote display available

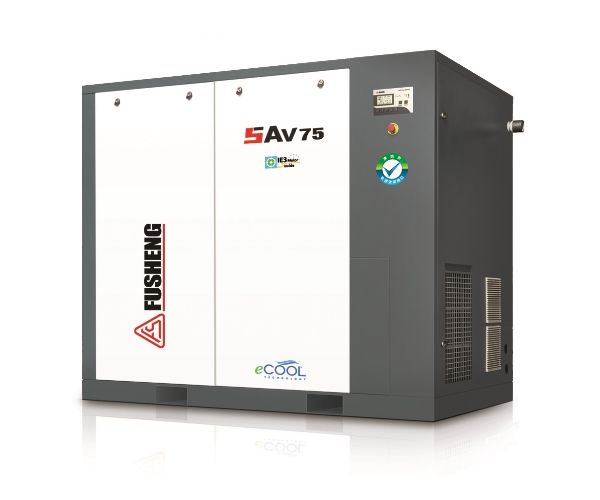

FUSHENG SAV Series Air-cooled Screw Air Compressor
SAV22-90 series screw compressor (Variable Speed)
|
Model |
Working pressure |
Delivery | Main motor power |
Compressed |
Indicative dimensions | Weight | ||
| MPa | m3/min | kW | L mm | W mm | H mm | kg | ||
|
SAV22 |
0.7 | 1.95-3.9 |
22 |
1" |
1430 |
880 |
1298 |
630 |
| 0.8 | 1.85-3.7 | |||||||
| 1.0 | 1.60-3.2 | |||||||
| 1.25 | 1.40-2.8 | |||||||
|
SAV37 |
0.7 | 3.30-6.6 |
37 |
1-1/2" |
1630 |
980 |
1450 |
970 |
| 0.8 | 3.15-6.3 | |||||||
| 1.0 | 2.80-5.6 | |||||||
| 1.25 | 2.45-4.9 | |||||||
|
SAV55A |
0.7 | 5.20-10.4 |
55 |
2" |
2250 |
1344 |
1694 |
2250 |
| 0.8 | 4.80-9.60 | |||||||
| 1.0 | 4.25-8.50 | |||||||
| 1.25 | 3.80-7.60 | |||||||
|
SAV75A |
0.7 | 7.05-14.1 |
75 |
2" |
2250 |
1344 |
1694 |
2380 |
| 0.8 | 6.40-12.8 | |||||||
| 1.0 | 5.80-11.6 | |||||||
| 1.25 | 5.15-10.3 | |||||||
|
SAV90A |
0.7 | 7.90-15.8 |
90 |
2" |
2250 |
1344 |
1694 |
2450 |
| 0.8 | 7.50-15.0 | |||||||
| 1.0 | 6.80-13.6 | |||||||
| 1.25 | 6.10-12.2 | |||||||
* For specification of Water-cooled, please feel free to contact us.
