CHILLER

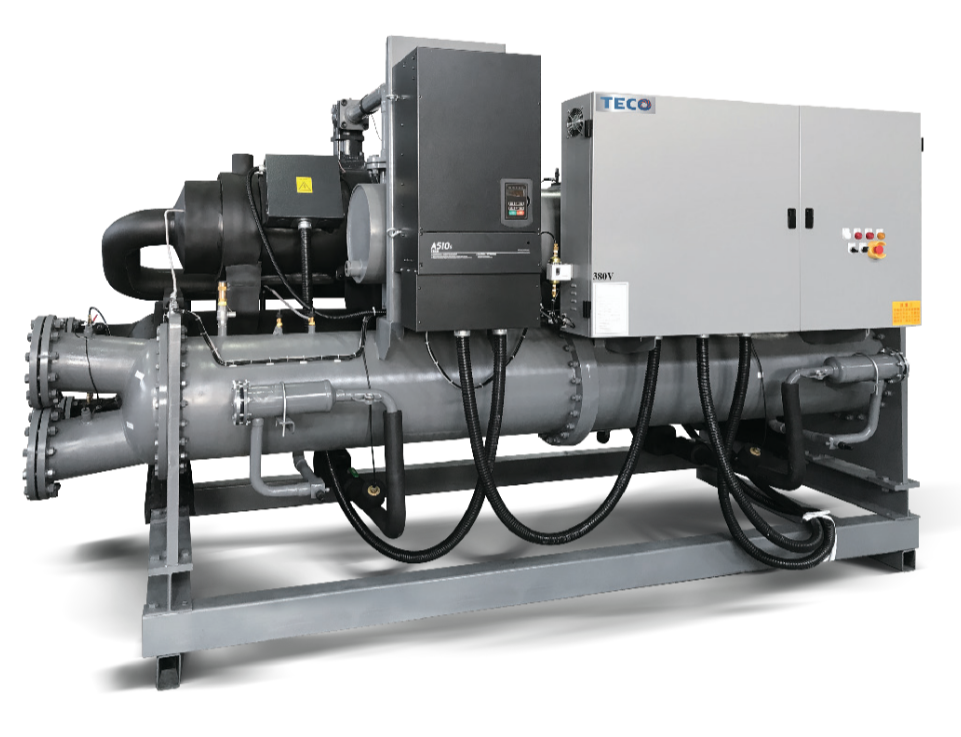

- PQA/D Series
- Water Cooled Screw Chiller
Power Supply
3ø-380V -50HZ
Controller
Microcomputer
Compressor Type
Semi--hermetic single/double Screw
Starting Method
Y-Delta
Refrigerant
R-22/ R-134a
Refrigerant Control Method
Thermostatic expansion valve
Chilled Water Condition
in 12°C, out 8°C
Protection Devices
High/low pressure switch, chilled water low temp switch, fusible plug, thermal overload, compressor internal thermostat
Inverter
TECO

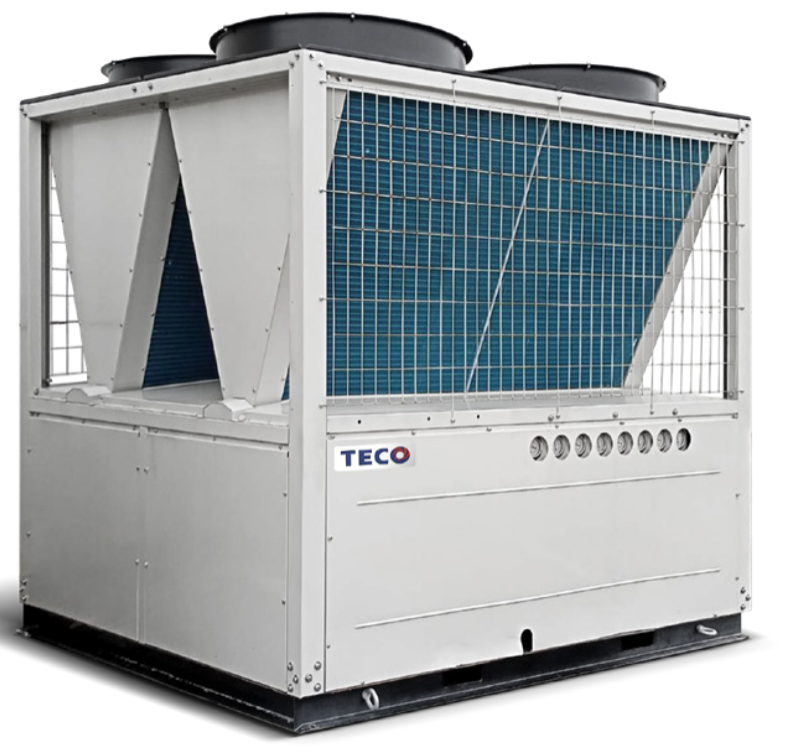

- PUCT Series
- Air Cooled Scroll Chiller
Power Supply
3ø-380V -50HZ
Controller
Microcomputer
Compressor Type
Hermetic scroll
Refrigerant
R410A
Chilled water condition
outlet temperature 7°C, Water flow rate 0.172m3/(hㆍ kW), outdoor temperature 35°C DB
Fan Type
Direct connected axial fan
- FLAN/FP Series
- Handling Units / Fan Coil Units
Power Supply
220V/ 380V/ 50HZ/60HZ
The Standard Refrigeration Condition
Into wind dry-bulb temperature: 27°C / Into wind wet-bulb temperature: 19.5°C / Inlet water temperature: 79°C / Outlet temperature: 12°C
Smoke-expelling Refrigeration Condition
Into wind dry-bulb temperature: 35°C / Into wind wet-bulb temperature: 28°C Inlet water temperature: 7°C / Outlet temperature: 12°C
Standard Heating Condition
Into wind temperature: 15°C Hot water Inlet temperature: 60°C / Hot water Outlet temperature: 50°C
Smoke-expelling Heating Condition
Into wind temperature: 7°C / Hot water Inlet temperature: 60°C
